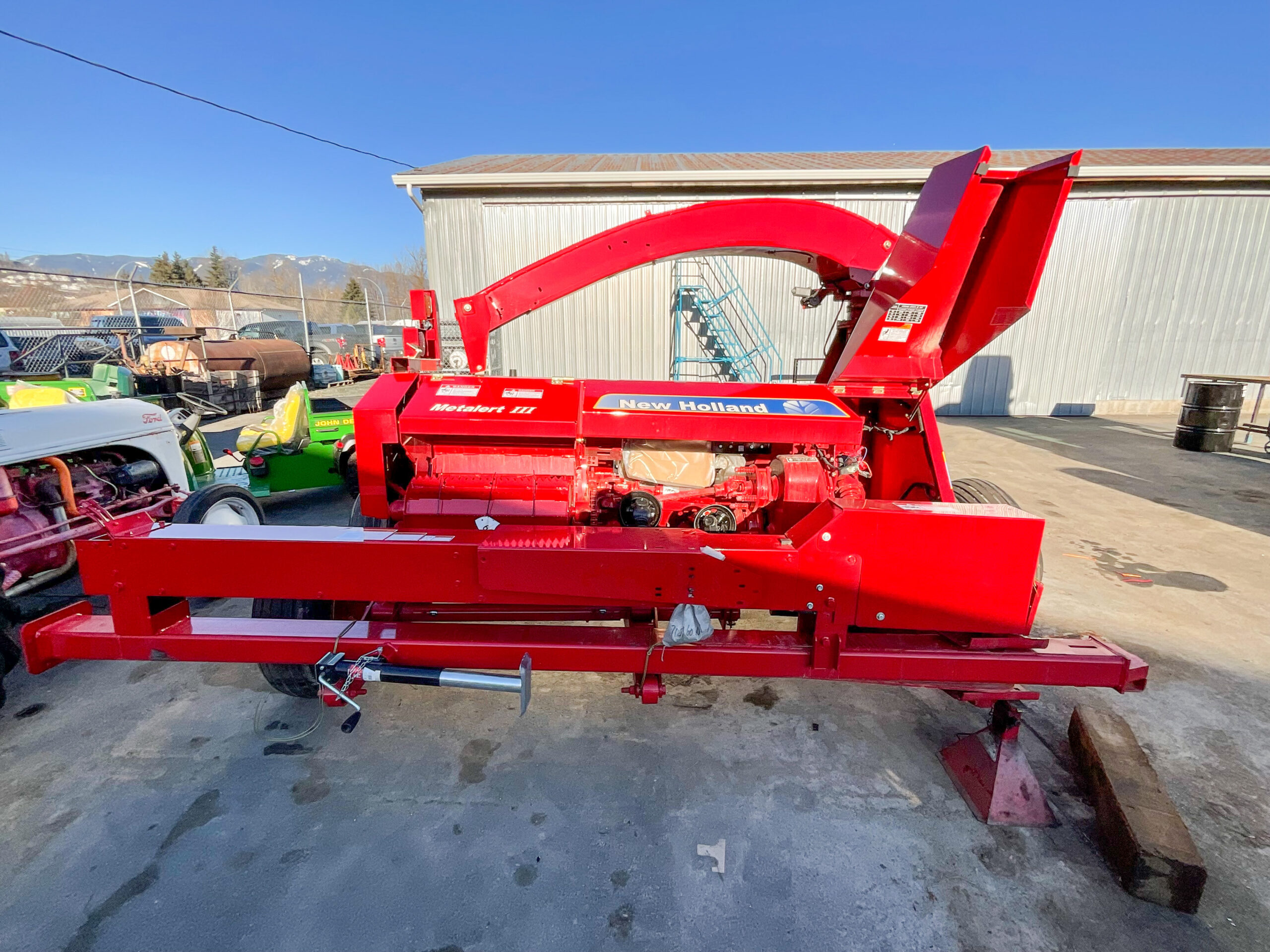

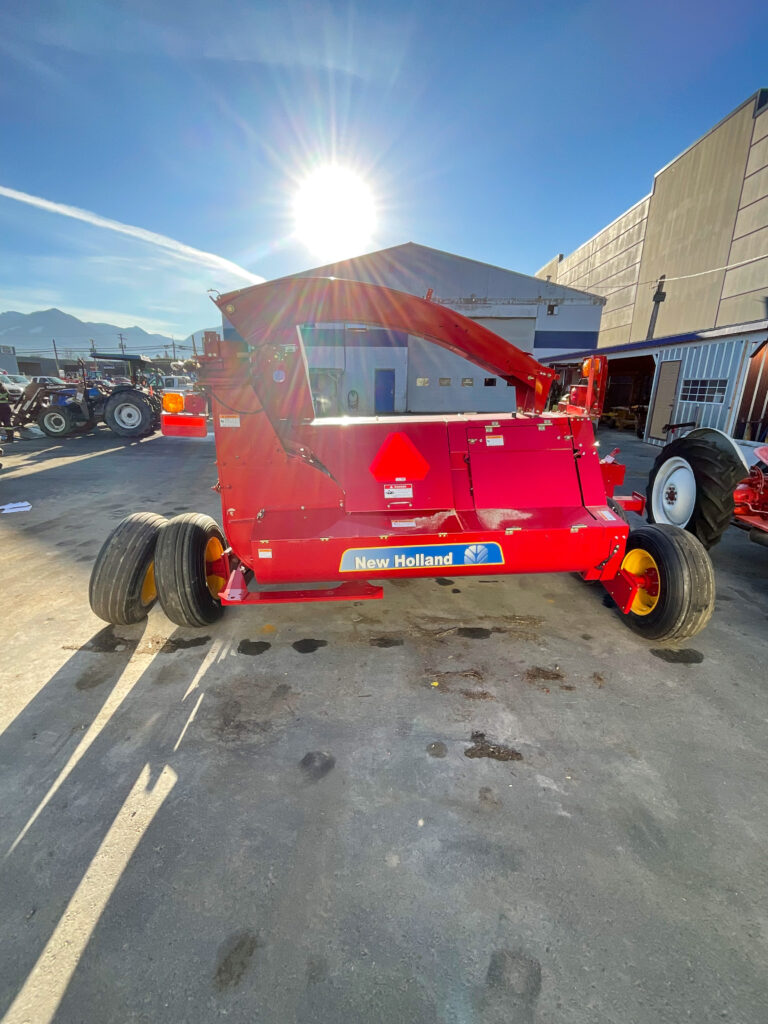

New Holland FP240

New Holland FP240

The New Holland FP240 Pull-Type Forage Harvester key features:

• “Uniform length of cut, yields high quality feed”(New Holland, 2022)
• Ultimate Convenience – built in knife sharpeners
• Smooth Feeding: “4 power-driven feed rolls that deliver material smooth to the cutterhead, for a controlled even cut.”(New Holland, 2022)
• “Hardened Reversible Shearbar for even wear and extra long life”(New Holland, 2022)
• “More cut length choices”(New Holland, 2022)

Specifications – May not be exact year – from New Holland Website

Location: Chilliwack office

Construction: Hardened-ductile iron, steel shaft

Weight, lbs. (kg): 520 lbs (231kg)

Roll width, in. (mm): 26-7/8″

Roll diameter, in. (mm): 7-7/8″ (200 mm)

Roll gap, in. (mm): 3/16″ to 5/8″ (4.8 to 15.9 mm)

Roll speed: 2650 rpm upper, 2250 rpm lower

Length, ft. in. (m): 21′ 6″ (6.5 m)

Height with standard spout, ft. in. (m): 11′ 2″ (3.4 m)

Width, ft. in. (m): 10′ 8″ (3.3 m)

Number/type of knives: 12 single-edge hardened alloy

Blower speed: 1000 rpm

Recommended max. tractor hp: 300hp

Minimum power required: 180 PTO hp

Tire sizes, tandem axle: 11Lx15-15 6PR
